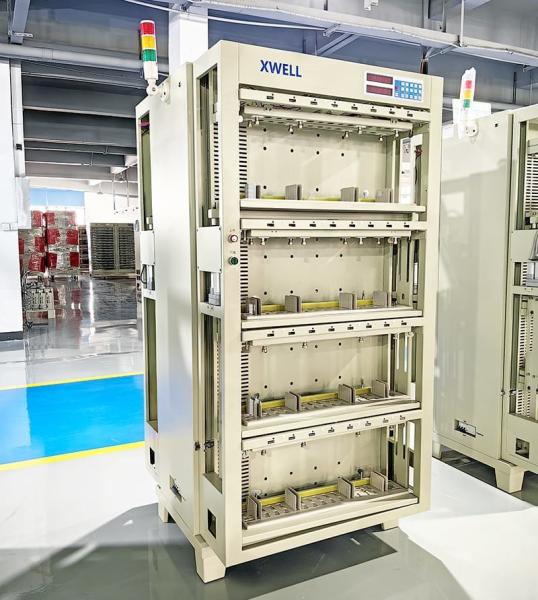

    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-32
    Certification : CE
    Price : USD 7900/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester

    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester

    Main performance of the equipment

    1. Each device can carry out constant current and constant voltage charging and constant current discharge test for 192 batteries that meet the voltage range.

    2. The patented constant current constant voltage power supply has no impact when switching from constant current to constant voltage, which is especially suitable for lithium ion battery charging requirements.

    3. The AVR single chip computer is used as the control center of the equipment, and the peripheral sampling circuit is used to control the work. When the computer is connected to work, the complete charge discharge curve of all channels can be saved, and the control panel can be operated to complete constant current and constant voltage charging, constant current discharge test and time sorting.

    4. Each battery has its own constant current and voltage source, and its own circuit does not affect each other.


    Main configuration requirements of the system (provided by customers)

    1. Minimum configuration of computer system: Celeron dual core CPU, 2G memory, 500GB hard disk space, EGA / VGA color display, one CD-ROM, one mouse, microsofttm Windows XP or above operating system, one available RS232 serial communication port. The number of computer systems shall be determined according to actual needs.


    Product Specification
    Working powerThree-phase five-wire system AC380V±10%, 50HZ
    Work environmentTemperature 0-40 degrees, relative humidity ≤80%
    Heat dissipationto enter the air naturally and exhaust the air upward
    Overall energy savingover 70%
    Channel Parameter
    Voltage measuring range0-5V, 1MV resolution
    Battery voltage rangeCharge 0-4.5V: Discharge 4.5-2V
    Constant voltage range2.5V-4.5V
    voltage accuracy±(1‰ reading +1‰ full)
    Current accuracy±(1‰ reading +1‰ full)
    Software Function
    Control modeComputer connection equipment work, FCL control
    Communication modeRS485 baud rate 57,600
    Process setA maximum of 32 work steps and 256 cycles are se
    Charging modeConstant current, constant pressure
    Charging cutoff conditionVoltage, current, time, capacity
    Dischargeconstant current
    Discharge cut-off conditionVoltage, time, capacity
    Defensive functionOvervoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
    Time rangeSet it anywhere from 0 to 30,000 minutes
    Time accuracy≤±1‰
    Sampling inspection period≤3S
    Minimum frequency of data recording≤5S
    Battery sortingBy capacity, time, discharge platform, etc
    Data processingData, graphs, and loop diagrams

    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester


    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester


    XWELL can provide different fixtures for different types of cells


    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester

    Battery Cell Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester
