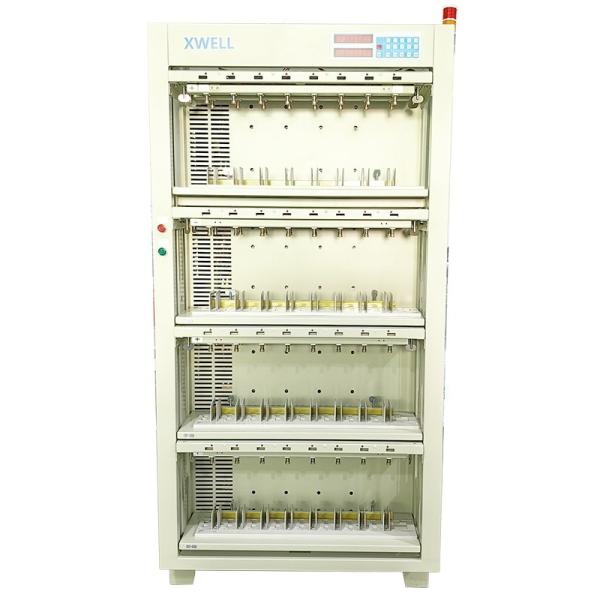

    5V 120A Battery Impudence Tester Charge Discharge Prismatic Battery Cell Grading Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-64
    Certification : CE
    Price : USD 7900/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    5V 120A Battery Impudence Tester Charge Discharge Prismatic Battery Cell Grading Machine

    5V 120A Battery Impudence Tester Charge Discharge Prismatic Battery Cell Grading Machine

    Product Advantage

    ■ Each battery test channel features an independent voltage and current loop design, ensuring stability without impact. It allows for functions like start, stop, pause, continue, and protection for individual channels. ■ Automatic calibration of charging and discharging current accuracy, and voltage accuracy is achievable through software.

    Main Functions

    1. Adopting modular manufacturing, with strong universality and easy maintenance.

    2. Adopting the four wire method for measurement, improving high testing accuracy.

    3. Each battery channel has a completely independent constant current and voltage source, and the self formed circuit does not affect each other.

    4. The equipment adopts the control method of sending the entire process.


    Product Specification
    Working powerThree-phase five-wire system AC380V±10%, 50HZ
    Work environmentTemperature 0-40 degrees, relative humidity ≤80%
    Heat dissipationto enter the air naturally and exhaust the air upward
    Overall energy savingover 70%
    Channel Parameter
    Voltage measuring range0-5V, 1MV resolution
    Battery voltage rangeCharge 0-4.5V: Discharge 4.5-2V
    Constant voltage range2.5V-4.5V
    voltage accuracy±(1‰ reading +1‰ full)
    Current accuracy±(1‰ reading +1‰ full)
    Software Function
    Control modeComputer connection equipment work, FCL control
    Communication modeRS485 baud rate 57,600
    Process setA maximum of 32 work steps and 256 cycles are se
    Charging modeConstant current, constant pressure
    Charging cutoff conditionVoltage, current, time, capacity
    Dischargeconstant current
    Discharge cut-off conditionVoltage, time, capacity
    Defensive functionOvervoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
    Time rangeSet it anywhere from 0 to 30,000 minutes
    Time accuracy≤±1‰
    Sampling inspection period≤3S
    Minimum frequency of data recording≤5S
    Battery sortingBy capacity, time, discharge platform, etc
    Data processingData, graphs, and loop diagrams

    5V 120A Battery Impudence Tester Charge Discharge Prismatic Battery Cell Grading Machine


    5V 120A Battery Impudence Tester Charge Discharge Prismatic Battery Cell Grading Machine


    XWELL can provide different fixtures for different types of cells
