    Soft Pack Battery Capacity Tester Industrial Lifepo4 Battery Pouch Cell Charging Grading Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-02
    Certification : CE
    Price : USD3000-5000/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 PCS a month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    Soft Pack Battery Capacity Tester Industrial Lifepo4 Battery Pouch Cell Charging Grading Machine

    Soft Pack Battery Capacity Tester Industrial Lifepo4 Battery Pouch Cell Charging Grading Machine


    Battery Pack Charging & Discharging Tester Machine
    • Use the graphical operation interface to display data such as voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors.
    • Arbitrary segmented battery capacity indication (up to 100 segments)
    • The data points can be recorded according to the changing conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of the curve data points is ≤10 seconds.

    Product Advantage

    2.1 Each equipment can do constant current constant voltage charging and constant current discharge testing for 512 pcs of cell which is within the voltage range.

    2.2 Constant current and constant voltage power supply, constant current to constant voltage switching without impact, especially suitable for lithium ion battery charging requirements.

    2.3 This equipment adopts AVR single-chip computer as the control center, and cooperates with the peripheral sampling circuit, which can be controlled by the upper computer. When connected to the computer, the complete charge and discharge curve of all channels can be saved. Or it can be separated from the upper computer and operated by the control panel to complete constant current and constant voltage charging, constant current discharge test, etc.

    2.4 Each battery has its own independent constant current and constant voltage source, and the self-forming loop does not affect each other.


    Structure Of Equipment


    ModelXW-02
    Number Of Device Channels256 channels
    Overall DimensionWidth 514.4mm× Depth 1684mm× Height 1840mm
    ColorStandard off-white or off-black (customizable)
    Jig Form65 Blue & white split clamp
    Fixture Spacing150mm Battery spacing
    Support Battery SpecificationsBattery length: 0-180mm, width: 0-150mm, thickness: 8-15MM;
    Battery tab center distance: 0-150mm
    Working Power SupplyThree-phase 5 wire system AC380V±10%,50HZ
    Power Factor0.99@ 220VAC, full load, grid THDu ≤2%
    Current Harmonic<5%@ 220VAC, full load, grid THDu ≤2%
    Power Consumption≤15 KW
    Work EnvironmentIndoors, temperature is 10-30℃ under air convection.
    Heat-Dissipating MethodAir cooling

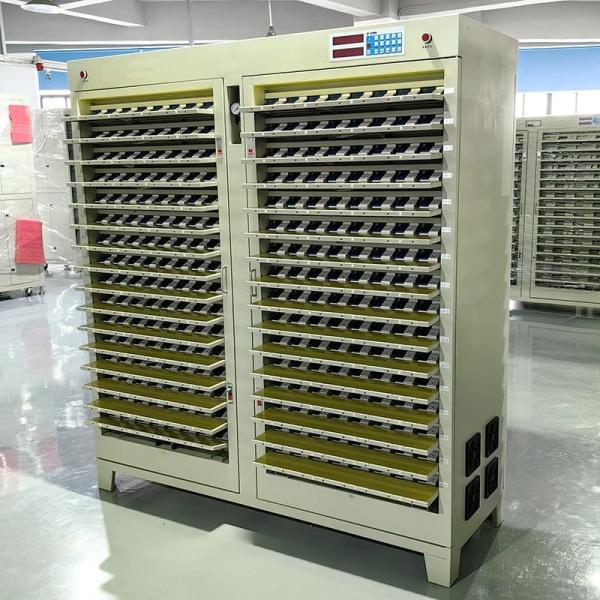

    Piture:

    Soft Pack Battery Capacity Tester Industrial Lifepo4 Battery Pouch Cell Charging Grading Machine
