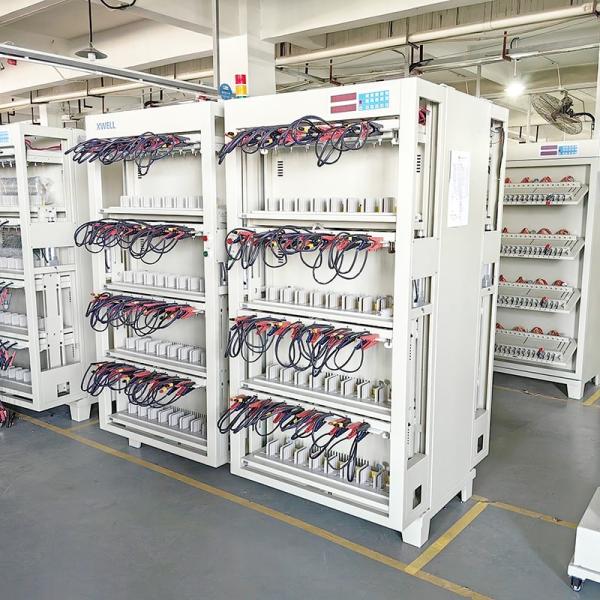

Prismatic Battery Cell Capacity Classify Grading Systems Machine

Guangdong XWELL New Energy Technology CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Prismatic Battery Cell Capacity Classify Grading Systems Machine from wholesalers

    Buy cheap Prismatic Battery Cell Capacity Classify Grading Systems Machine from wholesalers
    • Buy cheap Prismatic Battery Cell Capacity Classify Grading Systems Machine from wholesalers

    Prismatic Battery Cell Capacity Classify Grading Systems Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-64
    Certification : CE
    Price : USD 7900/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Prismatic Battery Cell Capacity Classify Grading Systems Machine

    Prismatic Battery Cell Capacity Classify Grading Systems Machine

    Professional battery testing equipment:

    Three key technologies:
    1. Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology
    2. High efficiency: labor efficiency increased by 50%
    3. High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology
    Energy-saving battery based on high-frequency power feedback technology
    The working principle of chemical composition equipment:

    Charging mode: PWM switching power supply mode is adopted to realize constant current and constant voltage charging of the battery.
    Advantages: high power conversion efficiency, generally above 85%.

    Product Specification
    Working powerThree-phase five-wire system AC380V±10%, 50HZ
    Work environmentTemperature 0-40 degrees, relative humidity ≤80%
    Heat dissipationto enter the air naturally and exhaust the air upward
    Overall energy savingover 70%
    Channel Parameter
    Voltage measuring range0-5V, 1MV resolution
    Battery voltage rangeCharge 0-4.5V: Discharge 4.5-2V
    Constant voltage range2.5V-4.5V
    voltage accuracy±(1‰ reading +1‰ full)
    Current accuracy±(1‰ reading +1‰ full)
    Software Function
    Control modeComputer connection equipment work, FCL control
    Communication modeRS485 baud rate 57,600
    Process setA maximum of 32 work steps and 256 cycles are se
    Charging modeConstant current, constant pressure
    Charging cutoff conditionVoltage, current, time, capacity
    Dischargeconstant current
    Discharge cut-off conditionVoltage, time, capacity
    Defensive functionOvervoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
    Time rangeSet it anywhere from 0 to 30,000 minutes
    Time accuracy≤±1‰
    Sampling inspection period≤3S
    Minimum frequency of data recording≤5S
    Battery sortingBy capacity, time, discharge platform, etc
    Data processingData, graphs, and loop diagrams

    Prismatic Battery Cell Capacity Classify Grading Systems Machine


    Prismatic Battery Cell Capacity Classify Grading Systems Machine


    XWELL can provide different fixtures for different types of cells


    Prismatic Battery Cell Capacity Classify Grading Systems Machine

    Prismatic Battery Cell Capacity Classify Grading Systems Machine
