Cylindrical Battery Tester Sorter 18650 21700 32650 Battery

Ask Lasest Price
Brand Name :	XWELL
Model Number :	XW-BS11
Certification :	CE
Price :	USD 5000 - 6000 / pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 pcs per month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

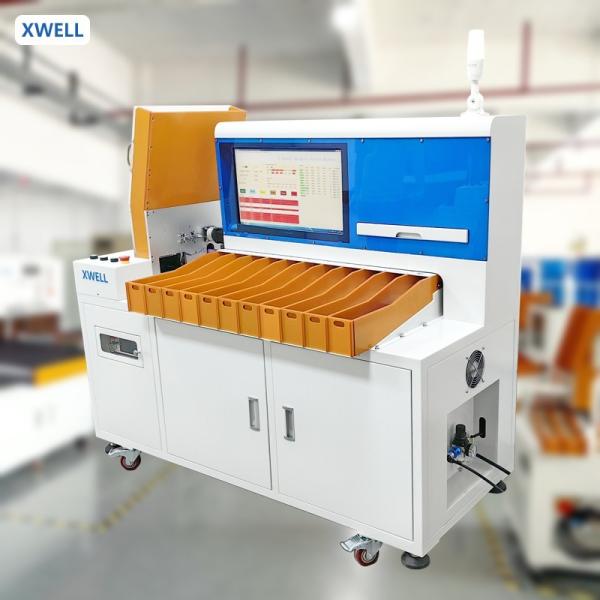

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery

Introduction:

The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting.

How sorting machine works?

The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	11 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	4500 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	4500 pcs/h

Cell Sorting Machine Details
