Brand Name : | XWELL |
Model Number : | XW-BS11 |
Certification : | CE |
Price : | USD 5000 - 6000 / pcs |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 100 pcs per month |
Delivery Time : | 15-20 days |

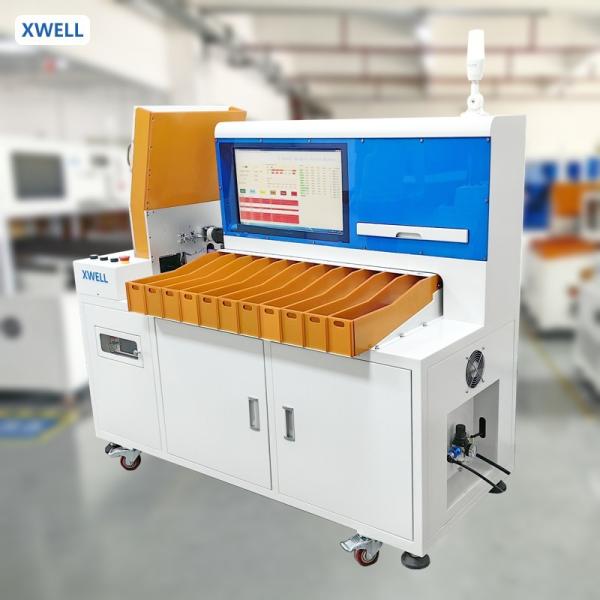

11 Channels Lithium Battery Automatic Sorter
XW-BS11 can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders
Functional description:
The 18650 battery 13 channel sorting machine is suitable for the
voltage and internal resistance sorting test of the 18650 battery
core which is divided by the battery core factory. The electrical
control part of the sorting system adopts modular design, with high
integration, good general purpose and convenient maintenance. The
actuator adopts stepper motor control with high precision and good
reliability. The number of equipment receiving slots is 13 slots,
which can be arbitrarily set voltage and internal resistance value.
The sorting efficiency is high, and the battery can be accurately
sent to the specified gear according to the set internal resistance
and voltage value. The equipment adopts the silo type loading, the
cylinder automatically divides the material, and the personnel
manually collects the material. Realize the automation of 18650
cell sortin
Cell Sroting Machine Specification
Voltage Supply | 220V±10%/50Hz±10% |
Power | <1000W |
Display Screen | Computer software user interface |
Battery Types | Cylindrical Cell (32140, 33138, 33140 ) |
Receiving Channel | 11 channels |
Test Parameter | AC internal resistance, DC voltage |
Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
Sorting Speed | 4500 pcs/h |
Weight | <200KG |
Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
Tester | HK3561 |
Productivity | 4500 pcs/h |
Cell Sorting Machine Details
![]() |
