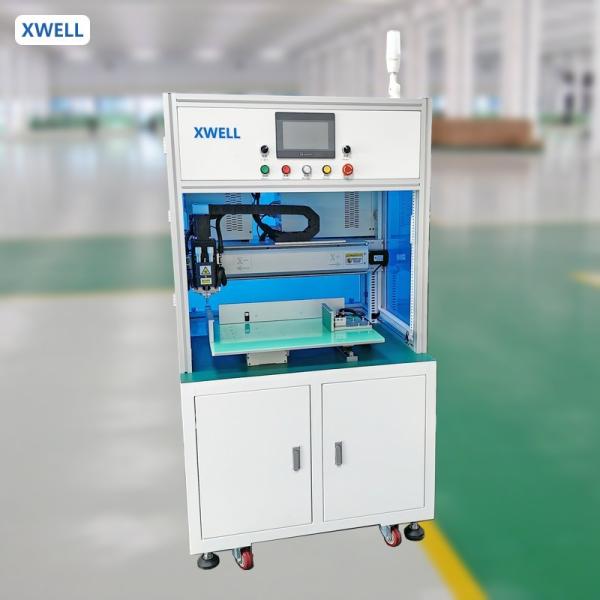

    Automatic 18650 Cells Single Side Spot Welding Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ASW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Automatic 18650 Cells Single Side Spot Welding Machine

    Automatic 18650 Cells Single Side Spot Welding Machine

    This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

    Features :

    1.Support break point start, support automatic start and manual start mode conversion.

    2.It has a false spot welding and out of spot welding alarm function.

    3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

    4.Welding needle replacement forecast reminder.

    5.Own welding current monitoring system, real-time monitoring of welding current.


    Battery Spot Welding Machine Specification

    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplysingle-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa


    Single Side Spot Welding Machine Details
    Automatic 18650 Cells Single Side Spot Welding Machine
    Automatic 18650 Cells Single Side Spot Welding MachineAutomatic 18650 Cells Single Side Spot Welding Machine
