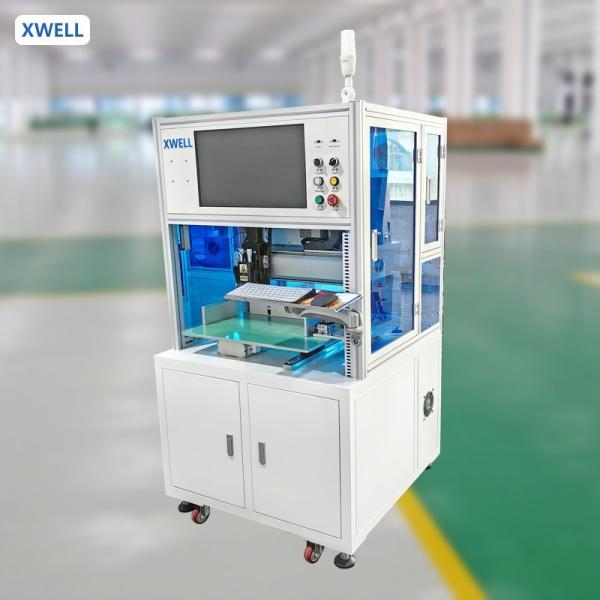

    Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ASW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding

    Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding


    Features

    1. Support breakpoint start, automatic start, and manual start.

    2. Cold solder joint and sealing off alarm.

    3. Easy program, support matrix, array and point program, can store 100 group parameters.

    4. Welding needle abrasion alarm.

    5. Build-in welding current monitor, can display real time welding current.

    6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.

    7. Can be matched with the production line of lithium battery group.

    8. Can store dozens process of different battery packs product, switching products without re-setting parameters.

    9. Can match a variety brand of spot welders.


    Battery Spot Welding Machine Specification

    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplysingle-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa


    Single Side Spot Welding Machine Details
    Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding
    Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack WeldingSingle Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding
