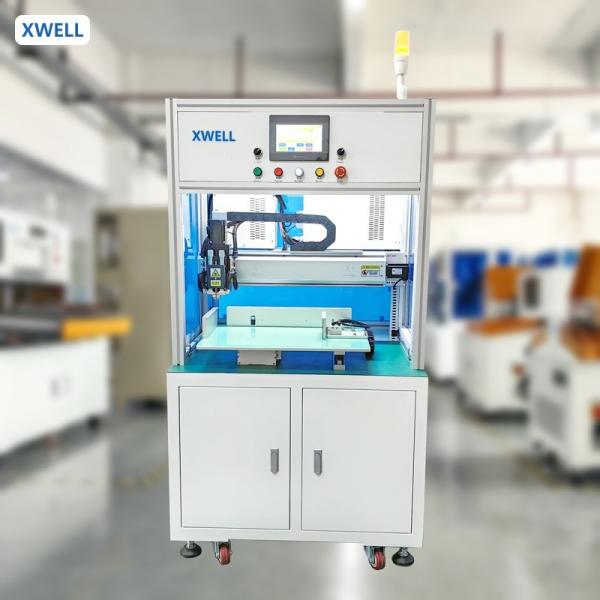

AC380V Single Side Automated Spot Welder For Battery​

Product Application:

MD-ADW is a standard singel-side automatic spot welding machine ,it no welding head rotation function, and MD-ADW

with welding head rotation function.Suitable for 14500 / 18500 / 18650 / 18730 / 21700 / 26650 / 32700 multi-parallel

multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack,

Scooter Electric Vehicle Battery, etc.

Product characteristics:

♦ Automatic welding, uniform solder joints, good consistency, improve the pass rate

♦ Real-time monitoring of welding current, automatic shutdown of false welding or explosive

fire alarm

♦ Optional spot welding specification welding (positive and negative pole can set different current)

♦ The coordinate parameters of spot welding can be imported by U Disk

♦ The running mechanism adopts Servo Motor and linear module, and the positioning is accurate

♦ Automatic production quantity collection, showing the current production efficiency

Product Specification

Product Application

MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Double side spot welder details

Cylindrical battery pack welding samples
