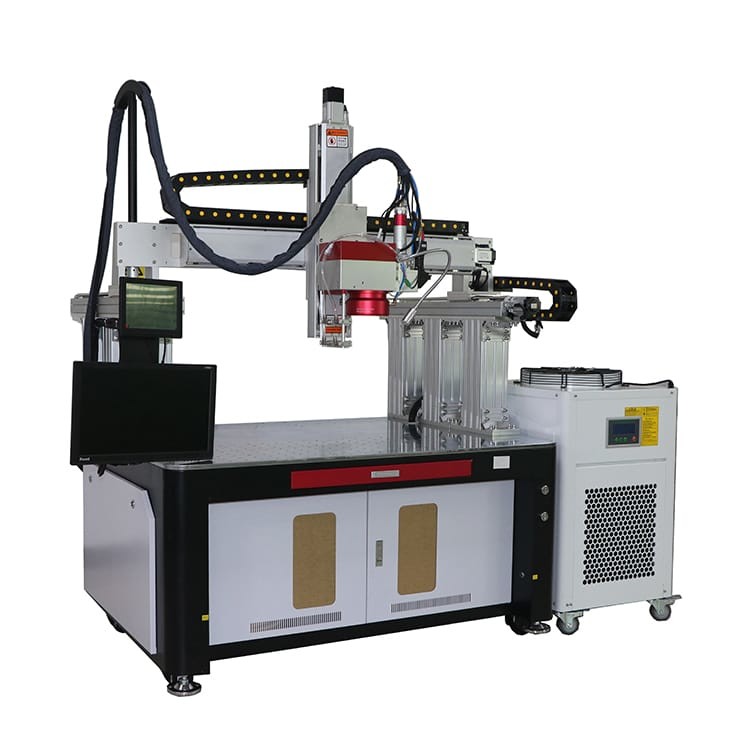

Laser Welding Machine For Lithium ION Battery Pack

• Mainly used in new energy lithium batteries: Busbar welding, rotary stud welding, tab welding, nickel rotary welding, busbar welding, explosion-proof valve welding, shell sealing welding, liquid injection port welding, etc.

• At the same time as the energy density of lithium-ion batteries is increasing rapidly, the threshold for safety is also rising. A good laser welding function can greatly reduce the failure rate of defective products, and the poor quality of lithium-ion batteries will cause the risk of thermal runaway caused by short circuit.

CCD Camera Display

Display on a video display by connecting the device. Claer welding point.

X.Y.Z Axis guide rail

With the function of moving up and down, it can weld irregular products. The Z axis has brake function.
Large-stroke gantry has a larger welding range.
Argon gas blown out of the air pipe doesn't damage to material surface

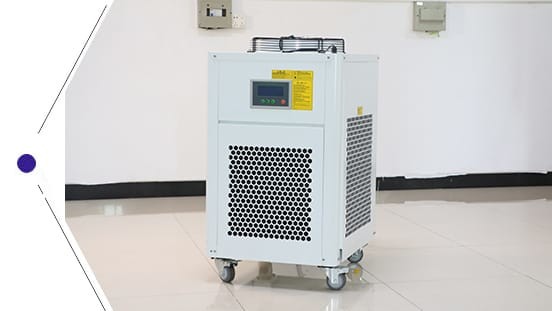

Water Cooling Machine

Equipped with with 1.5P chiller. it can meet the requirements for a long time. High power welding is more stable.

Standard cabinet, four-axis travel.

With different water machines and different welding heads, the stroke and welding effect will be different.

Desktop welding and handheld welding, multifunctional machine. One machine with multiple functions, customized fixtures, and multiple customized welding stations, work faster and more accurately.

Raycus Laser source
1000W—220V
1500W—380V
2000W—380V

MAX Laser source
1000W—220V
1500W—380V
2000W—380V

JPT Laser source
1000W—220V
1500W—380V
2000W—380V

Laser machine parameters
